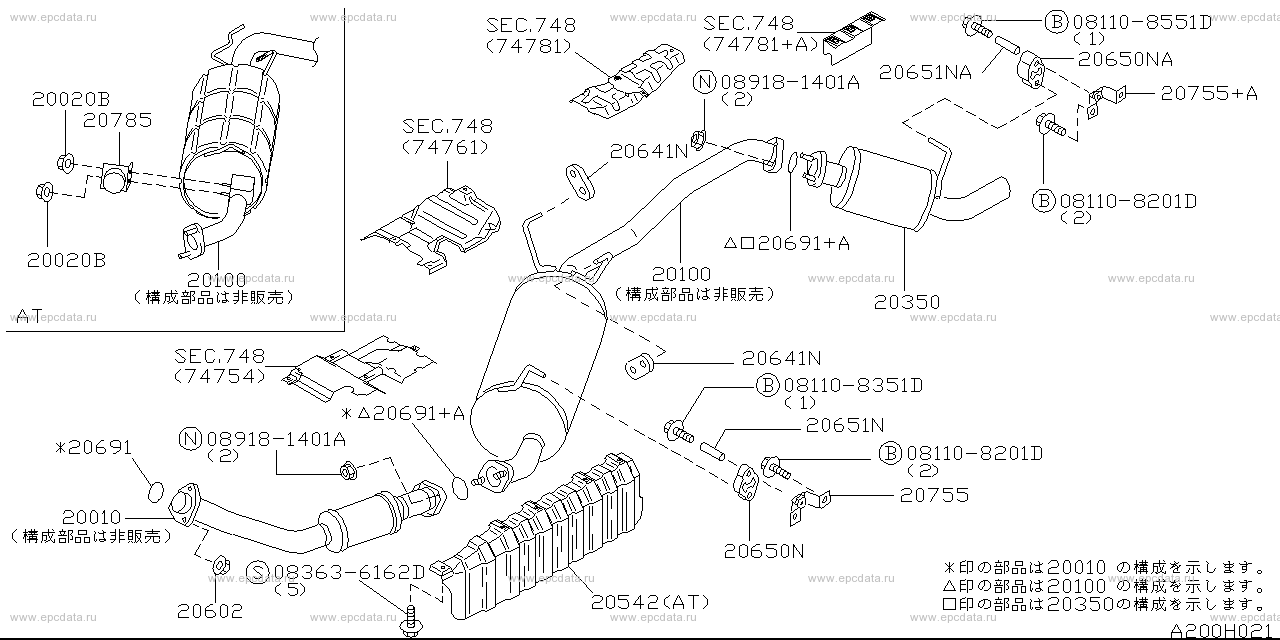

200 - exhaust tube & muffler (chassis) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20ET (2000 diesel turbo ﾃﾞﾝｾｲ) drive 2WD (two-wheel drive ) Manufacture period 01.1997 - 01.1998 grade FX transmission AT (automatic transmission )

---

Applies for models	Manufacture period	Spec
2WD.CD20T	05.1994 - 01.1997	標準

Open full screen picture Up to the top

081108201D 081108351D 081108551D 083636252A 089111062A 089151362A 089181401A 20010 - tube assembly, exhaust front 20020B - nut 20091 - finisher, exhaust 20100 - muffler assembly, exhaust main 20350 - muffler assembly, post 20602 - nut, fix exhaust tube 20641N - insulator, exhaust mounting 20650N - insulator, exhaust mounting 20650NA - insulator, exhaust mounting 20651N - collar, exhaust insulator 20651NA - collar, exhaust insulator 20691 - gasket, exhaust 20691+A - gasket, exhaust 20755 - bracket, exhaust mounting 20755+A - bracket, exhaust mounting 20785 - insulator, exhaust dynamic damper

---

Applies for models	Manufacture period	Spec
2WD.CD20T	05.1994 - 01.1997	カンチ

Open full screen picture Up to the top

081108201D 081108351D 081108551D 081208701A 083636252A 089111062A 089151362A 089181401A 089182081A 20010 - tube assembly, exhaust front 20020B - nut 20091 - finisher, exhaust 20100 - muffler assembly, exhaust main 20350 - muffler assembly, post 20602 - nut, fix exhaust tube 20641N - insulator, exhaust mounting 20650N - insulator, exhaust mounting 20650NA - insulator, exhaust mounting 20651N - collar, exhaust insulator 20651NA - collar, exhaust insulator 20691 - gasket, exhaust 20691+A - gasket, exhaust 20692M - gasket, exhaust 20710 - mounting assembly, exhaust rubber 20726 - bracket, exhaust mounting 20755 - bracket, exhaust mounting 20755+A - bracket, exhaust mounting 20785 - insulator, exhaust dynamic damper 47420Z - shutter valve unit, exhaust

---

Applies for models	Manufacture period	Spec
2WD.CD20ET	01.1997 - 01.1998	標準
2WD.CD20ET	01.1998 - ...	標準

Open full screen picture Up to the top

081108201D 081108351D 081108551D 083636162D 089181401A 20010 - tube assembly, exhaust front 20020B - nut 20100 - muffler assembly, exhaust main 20350 - muffler assembly, post 20542 - insulator 20602 - nut, fix exhaust tube 20641N - insulator, exhaust mounting 20650N - insulator, exhaust mounting 20650NA - insulator, exhaust mounting 20651N - collar, exhaust insulator 20651NA - collar, exhaust insulator 20691 - gasket, exhaust 20691+A - gasket, exhaust 20755 - bracket, exhaust mounting 20755+A - bracket, exhaust mounting 20785 - insulator, exhaust dynamic damper

---

Applies for models	Manufacture period	Spec
2WD.CD20ET	01.1997 - 01.1998	寒地
2WD.CD20ET	01.1998 - ...	寒地

Open full screen picture Up to the top

081108201D 081108351D 081108551D 081208701A 083636162D 089181401A 089182081A 20010 - tube assembly, exhaust front 20100 - muffler assembly, exhaust main 20350 - muffler assembly, post 20542 - insulator 20602 - nut, fix exhaust tube 20641N - insulator, exhaust mounting 20650N - insulator, exhaust mounting 20650NA - insulator, exhaust mounting 20651N - collar, exhaust insulator 20651NA - collar, exhaust insulator 20691 - gasket, exhaust 20691+A - gasket, exhaust 20692M - gasket, exhaust 20710 - mounting assembly, exhaust rubber 20726 - bracket, exhaust mounting 20755 - bracket, exhaust mounting 20755+A - bracket, exhaust mounting 47420Z - shutter valve unit, exhaust

Vanette Serena KVC23
